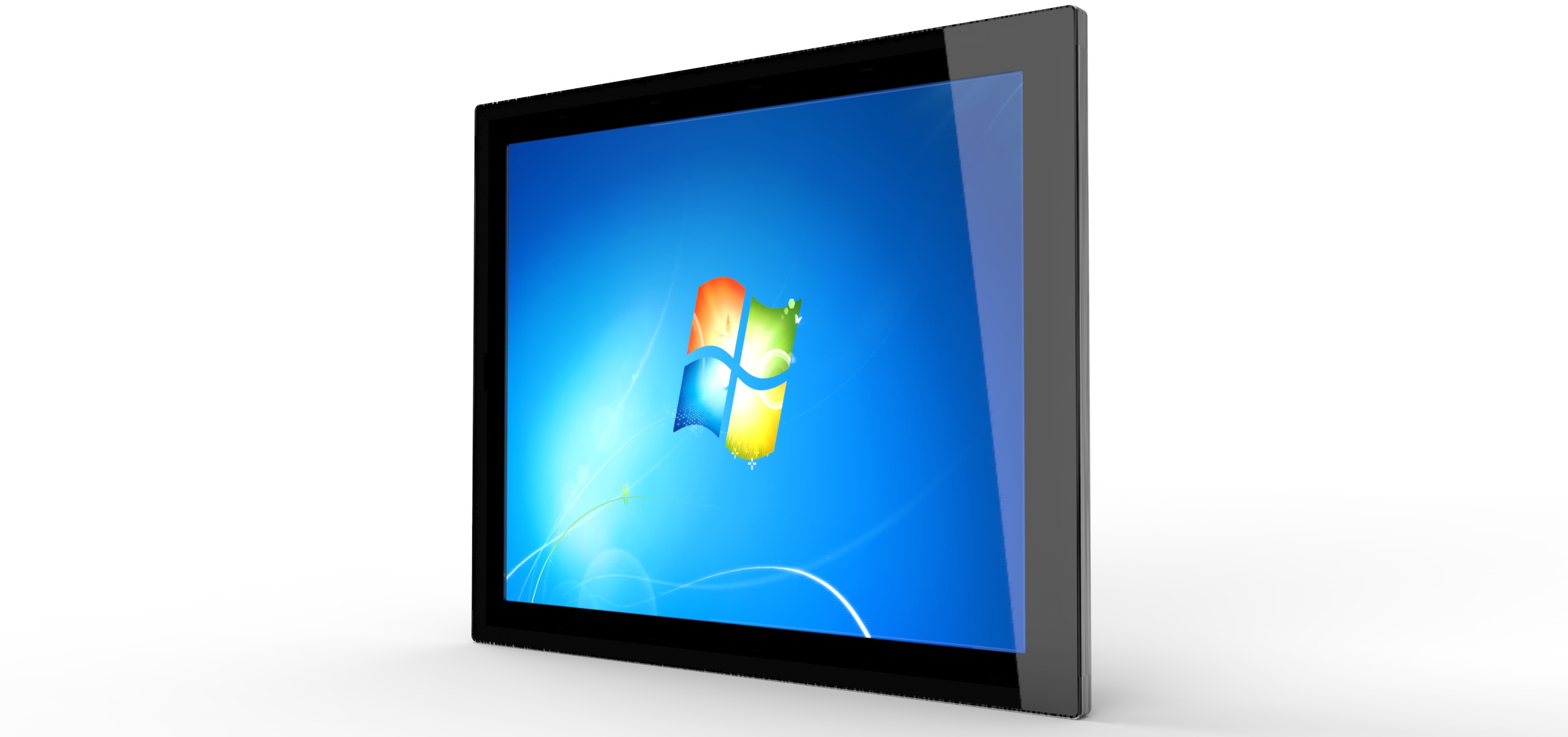

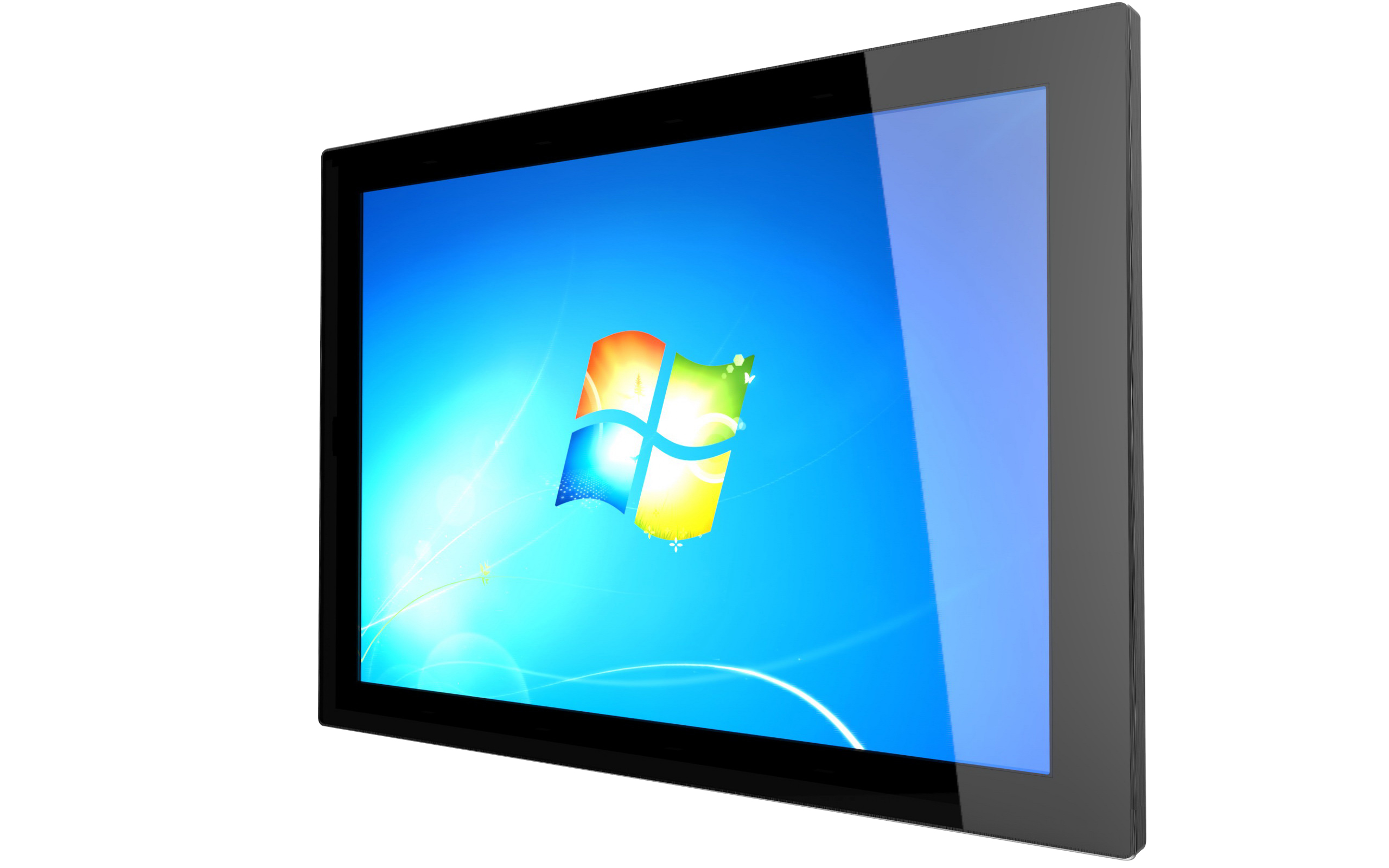

Panel / Box Computer
APC-1970T
Features:
◎ 19” SXGA support 1280 x 1024 pixels
◎ 4th Gen. Intel® desktop processor
◎ 5 wire resistive touch screen
◎ 1 x Gigabit LAN, 1 x HDMI, 1 x DVI-I, 2 x USB 2.0, 2 x USB 3.0
◎ 1 x Audio line in, 1 x Audio line out
◎ Panel Mount, Wall Mount, VESA Mount
The APC-1970T panel pc computer is an all-in-one and compact system designed around a highly integrated Intel® HD Graphics Media Accelerator (GMA) chipset motherboard computer which is equipped with a 12.1-inch TFT LCD display. Features an embedded 4th Gen. Intel® desktop processor, it offers a compact design for limited space environments to meet the demanding performance requirements of business and industrial applications including factory / warehouse / home automation, digital signage, kiosk, network communication and information terminal.
|
Display |
|
Display Type |
19” SXGA TFT LCD |
||
|
Resolution |
1280 x 1024 pixels |
||||
|
Luminance / Brightness |
250 cd/m2 (w/o Touch) |
||||
|
Backlight MTBF |
LED Backlight, 30,000 hrs |
||||
|
Touch Screen Type |
5 wire resistive touch screen with USB interface |
||||
|
Main System |
|
System Board |
Mini ITX form factor, Dimension: 170 x 170 mm |
||
|
CPU |
4th Gen. Intel® desktop processor Socket LGA1150 for Intel® Core i7/i5/i3/Celeron |
||||
|
Chipset |
Intel® H81 |
||||
|
Memory Slots |
Dual channel DDR3 1333/1600MHz SO-DIMM Support up to 16GB of system memory |
||||
|
Onboard Graphic |
Intel® HD Graphic |
||||
|
Audio |
High Definition Audio |
||||
|
LAN |
Intel® i217V Gigabit Ethernet |
||||
|
Storage |
|
Drive Bay |
1 x mSATA SSD bay, 1 x 2.5” HDD, 1 x eSATA |
||
|
I/O Connectors |
|
1 x DVI, 1 x HDMI, 1 x LAN |
|||
|
2 x USB 2.0, 2 x USB 3.0, 1 x eSATA |
|||||
|
1 x Audio line in, 1 x Audio line out |
|||||
|
1 x Power switch |
|||||
|
Expansion |
|
1 x Mini PCI-Express socket, 3 x COM (2 x RS232, 1 x RS232/422/485) optional |
|||
|
Power Supply |
|
12V~19V DC-in |
|||
|
Dimension |
|
440.6mm x 366mm x 108mm |
|||
|
Environment |
|
Storage Temperature: -20 ~ 60˚C |
|||
|
Operating Temperature: 0 ~ 50˚C |
|||||
|
Relative Humidity: 10%~95%, non-condensing |
|||||
Optional Accessories:
|
SATA SSD |
|
32GB, 64GB, 128GB |
|
2.5” HDD |
|
250GB, 500GB |
|
DDR3 RAM |
|
2GB, 4GB, 8GB |
|
Cable |
|
DB9 COM Port cable |
Optional OS Installation:
|
Windows Embedded Standard 7 Runtime(WES7) |
Ordering Information:
|
APC-1970T |
|
19” Panel PC Computer with FAN |
