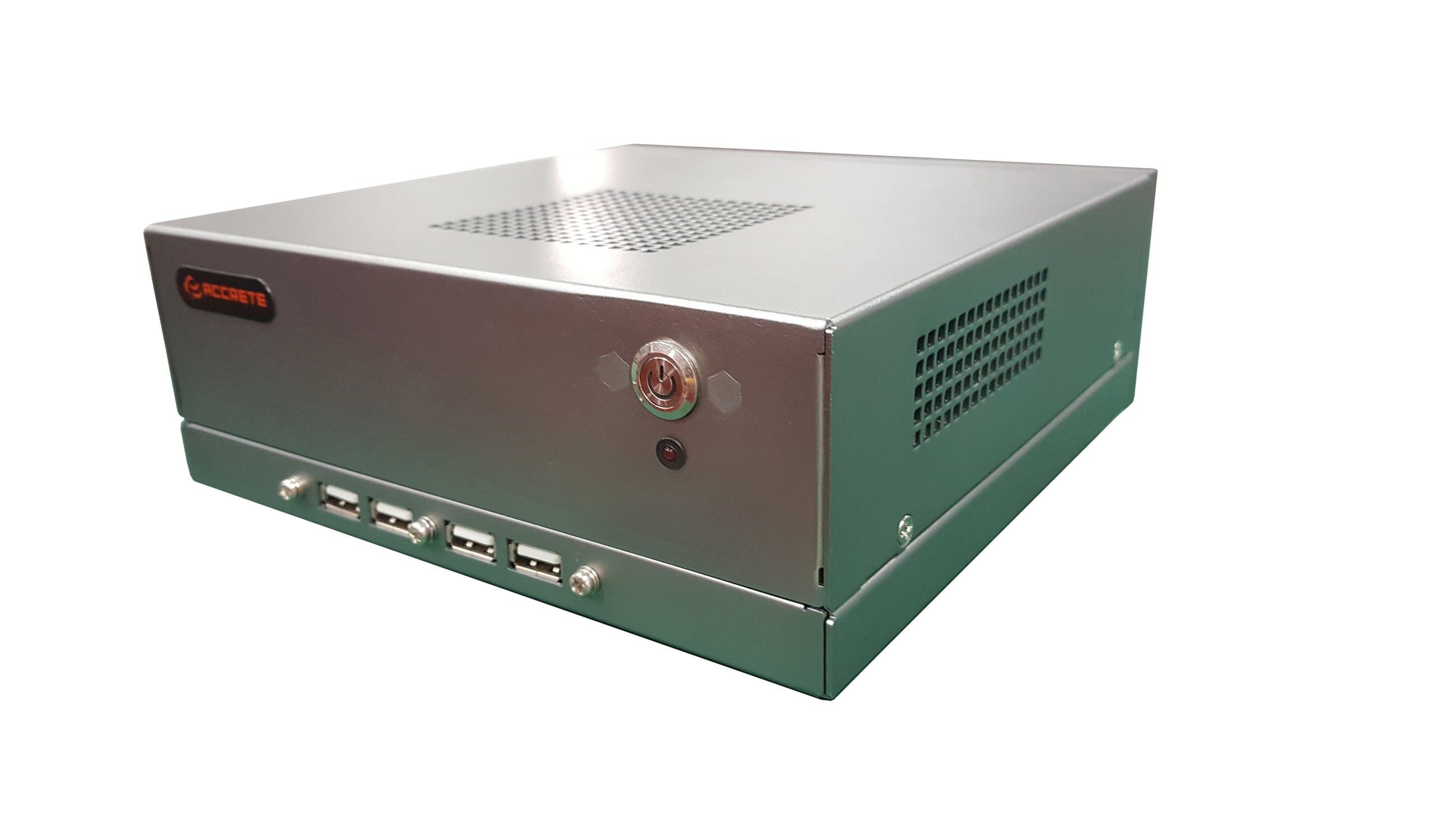

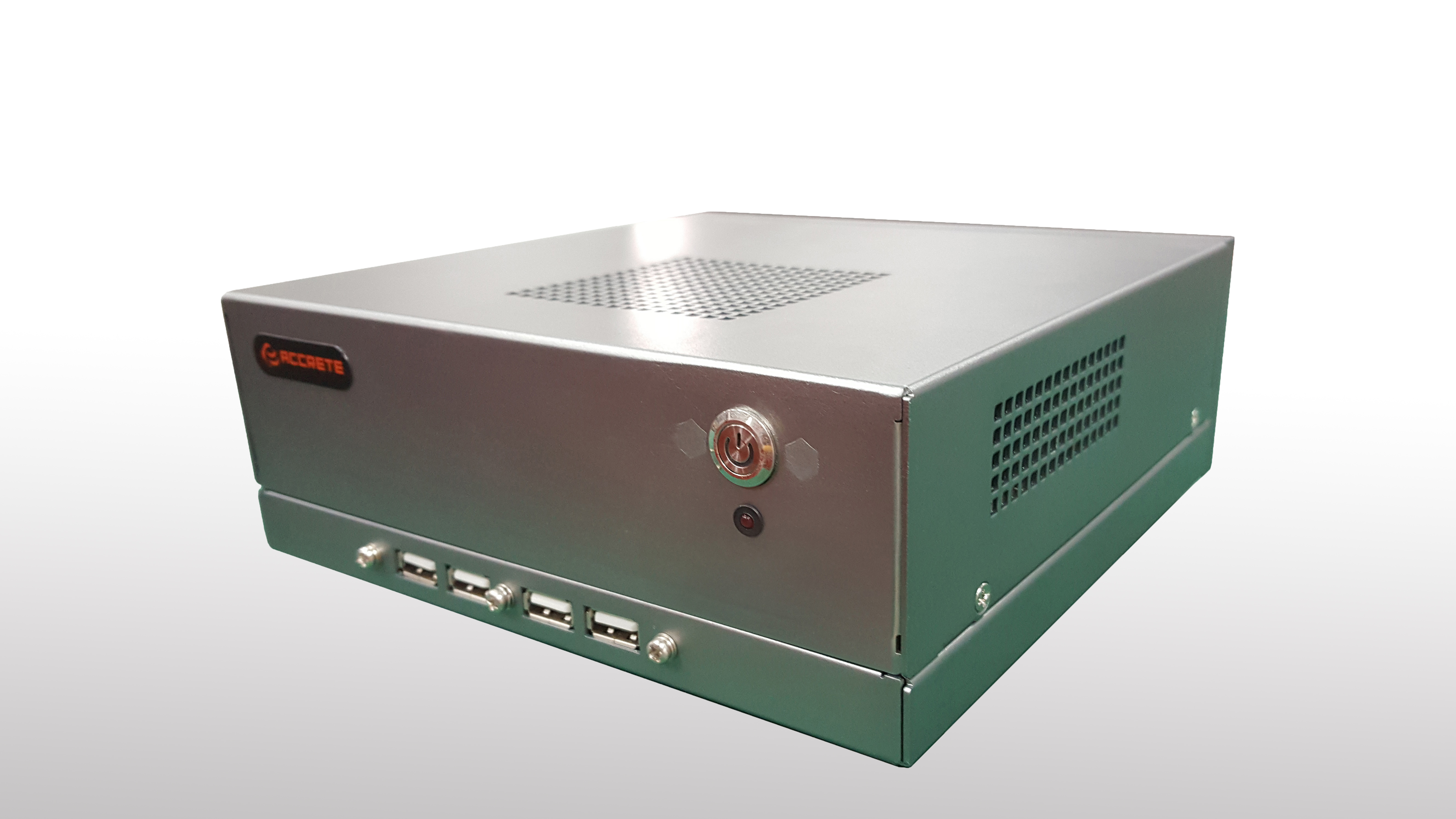

Panel / Box Computer
EBS-3000-FM
Features:
◎ Embedded Industrial Computer
◎ Fully Aluminium Chassis – Improve Heat Flow l
◎ Intel 6th Gen iCore i3 Processor with 4GB DDR4 Memory
◎ 2.5" 128GB Industrial Grade Solid State Disk Drive
◎ Dimension: 190mm(W) x 68.5mm(H) x 188mm(D)
Accrete provides Embedded Industrial systems to help customers quickly integrate with the current system for limited space environment. The embedded systems features versatile I/O configuration, at the same time offers compact size system requiring superior performance and reliability.
|
Main System |
|
Form Factor |
Embedded |
|
|
CPU |
Intel® 6th Gen iCore i3 Processor |
|||
|
Chipset |
Intel® Q170/H110 |
|||
|
Memory |
4GB DDR4 FSB 2133Mhz |
|||
|
Graphic |
9th Gen Intel® Graphic |
|||
|
Lan |
Dual Intel® Gigabit LAN |
|||
|
Storage |
|
Solid State Disk Drive |
2.5" SATA 128GB Industrial Grade |
|
|
I/O Connectors |
|
10 x USB Port, 1 x PS/2 |
||
|
4 x Serial |
||||
|
2 x LAN |
||||
|
Expansion |
|
1 x Mini PCI Express Slot |
||
|
Power Supply |
|
4-pin power connector for DC power input +12V~24V DC input (with +/- 5%) |
||
|
Chassis |
|
Embedded |
||
|
Dimension |
|
190(W) x 68.5(H) x 188(D) mm |
||
|
Carton Size |
|
275(W) x 135(H) x 270(D) mm |
||
|
Construction |
|
Fully Aluminium Chassis – Improve Heat Flow |
||
|
Colour |
|
Industrial Gray |
||
|
Weight |
|
7 kg |
||
|
Environment |
|
Operating Temperature: 0 ~ 55 ˚C |
||
|
Certifications |
|
CE, FCC, RoHS |
||
Optional Accessories:
|
Processor |
|
Support 6th Gen i3, i5, i7 processor |
|
Memory |
|
Support up to 32GB System Memory |
Optional OS Installation:
|
Windows Embedded Standard 7 Runtime(WES7) |
Ordering Information:
|
EBS-30i3-6FM |
|
Embedded Intel® 6th Gen iCore i3 Industrial Computer |
