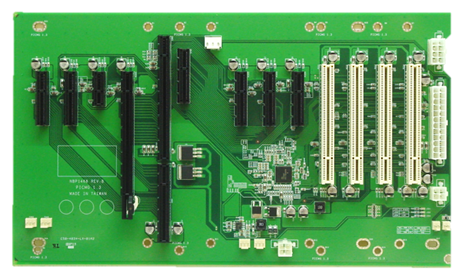

NBP-1468

PICMG 1.3 Half Size passive Backplane PICMG 1.3 x 1、PCIe x16 x 1(PCIe x 8 signal)、PCIe x 4 x 5、PCIe x 1 x1、PCI x 4


Features:
◎ 14‐slot (PICMG 1.3 x 1, PCIex16 x 1, PCIex4 x 5, PCIex1 x 1, PCI x 4)
◎ Designed for 4U Chassis
◎ Support Four Fan Power、Power signal status
◎ Dimension : 316.9 x 181.1(mm)
◎ Power Connector Supports
   24 PIN ATX Power Connector
   8 PIN ATX Standard Power Connector
   Support ±12V、‐5V、3.3V Power Connector
◎ 6‐layer PCB to reduce noise and keep lower impedance


Solution:

The NBP-1468 is a 14-slot backplane with 1 SHB slot, 1 PCIe x16, 5 PCIe x4, 1 PCIex1 and 5 PCI slot.

The NBP-1468 follows PICMG 1.3 platform specifications and supports ATX power supply.



System Architecture



14-slot backplane

Dimension



316.9 x 181.1 (mm)

Slots



1 SHB slot

1 PCIex16, 5 PCIex4, 1 PCIex1, 5 PCI slot

Power Input



24 PIN ATX Power Connector

8 PIN ATX Standard Power Connector Support ±12V、-5V、3.3V Power Connector

Environment



Board level operating temperatures: 0˚C to 60˚C

Storage temperatures: -20˚C to 80˚C

6-layer PCB to reduce noise and keep lower impedance

Relative Humidity



0% to 90% (operating, non-condensing)

0% to 95% (non-operating, non-condensing)

Certification



CE approval

FCC Class A


Ordering Information:

NBP-1468



PICMG 1.3 Half Size passive PICMG 1.3 x 1、PCIe x 16 x 1、PCIe x 4 x 5、PCIe x 1 x 1、PCI x 4
