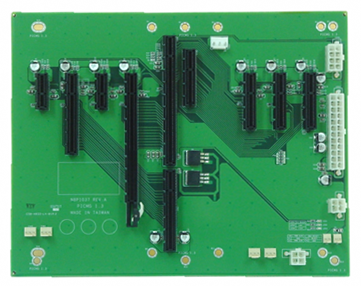

NBP-1037

PICMG 1.3 Half Size passive Backplane PCIe x 16 x1 (PCIe x 8 signal)、PCIe x 8 x 1、PCIe x 4 x 3、PCIe x 1 x 2


Features:
◎ 10‐slot (PICMG 1.3 x 1, PCIex16 x 1, PCIex8 x 1, PCIex4 x 3, PCIex1 x 2)
◎ Designed for 4U Chassis
◎ Support Four Fan Power、Power signal status
◎ Dimension : 231 x 181(mm)
◎ Power Connector Supports
   24 PIN ATX Power Connector
   8 PIN ATX Standard Power Connector
   Support ±12V、‐5V、3.3V Power Connector
◎ 6‐layer PCB to reduce noise and keep lower impedance


Solution:

The NBP-1037 is a 10-slot backplane with 1 SHB slot, 1 PCIex8 , 3 PCIex4 and 2 PCIex1 slot.

It follows PICMG 1.3 platform specifications and supports ATX power supply.



System Architecture



10-slot backplane

Dimension



231 x 181 (mm)

Slots



1 SHB slot

1 PCIex16, 1 PCIex8, 3 PCIex4, 2 PCIex1

Power Input



24 PIN ATX Power Connector

8 PIN ATX Standard Power Connector Support ±12V、-5V、3.3V Power Connector

Environment



Board level operating temperatures: 0˚C to 60˚C

Storage temperatures: -20˚C to 80˚C

6-layer PCB to reduce noise and keep lower impedance

Relative Humidity



0% to 90% (operating, non-condensing)

0% to 95% (non-operating, non-condensing)

Certification



CE approval

FCC Class A


Ordering Information:

NBP-1037



PICMG 1.3 Half Size passive Backplane PCIe x 16 x 1 (PCIe x 8 signal)、 PCIe x 8 x 1 、PCIe x 4 x 3、 PCIe x 1 x 2
