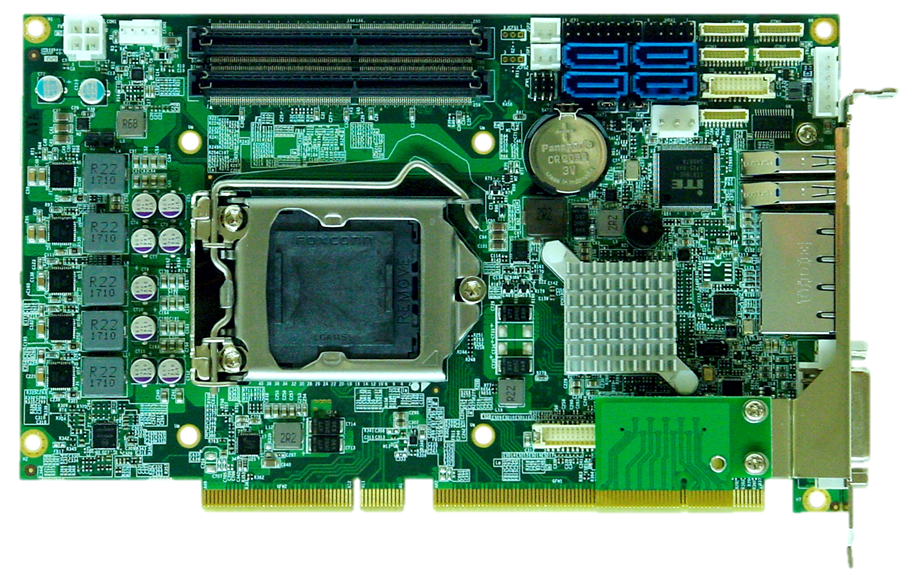

PIC-688

LGA 1151 6th gen Intel® Xeon® and Core™ i7/i5/i3 half-size SHB with PCIE 3.0 Triple independent display/Dual gbe LAN/SATA III/USB 3.0


Features:
◎ Complies with PCIMG1.3 standard
◎ Supports Intel® Xeon®/ Core™ i7/i5/i3 LGA1151 processors with C236 / Q170 / H110
◎ Dual Channel DDR4 1866 / 2133 up to 32 GB
◎ Supports triple display
◎ Support maximum PCIex16 X1, PCIex4 X3, PCIex1 X2
◎ Display Support for VGA, DVI, HDMI
◎ Support maximum PCIex16 X1, PCIex4 X3, PCIex1 X2


Solution:

The PIC-688 is a PICMG1.3 Half-size Single-Board Computing .It equipped with Intel® 6th generation Core™ i7/i5/i3 processors and Intel® H110 / Q170/ C236 chipset. It comes with Dual DDR4 DIMM socket up to 32GB DDR4 1866/2133MHz with Non-ECC support and integrated HD Graphic controller.

The PIC-688Q SKU with Intel® Q170 PCH providing high performance and rich expansion , support 30 PCIe lanes(Gen3) , provide flexible expansion design on backplane and high customization options.



Cpu Support



6th generation Intel® Xeon® and Intel® Core™ i7/i5/i3 porcessor (65W/35W) TDPs, Socket LGA1151

Main Memory



2 x SODIMM, support Dual chanel DDR4 Non-ECC SODIMM 1866/2133 MT/S(Maximum 32GB)

Platform Control Hub



Intel® H110 / Q170 / C236 Express Chipset PCH

BIOS



AMI system BIOS

I/O Bracket



USB 3.0 x 2 port

RJ45 x 2 port

DVI-I x 1 port

On-Board LAN



1 x Intel® WG1219LM GbE PHY

1 x Intel® I211 Gigabit Ethernet Controller

Support Boot from LAN (PXE)

Support Wake on LAN

Display



The Processor Graphics contains a refresh of the ninth generation graphics Intel® HD Grpahics 530

Suppport independent triple display

DVI-I(VGA):Resolutioin up to 1920x1200 pixels @60MHz

DVI-D(HDMI):Resolutioin up to 4096x2304 pixels @60MHz

DP:Resolutioin up to 4096x2304 pixels @60MHz

Supporting 4K display required two DDR channels of same size

On-Board I/O



4 x SATA port Support RAID 0/1/5/10

DP port with 20pin Connector

SIO:ITE8786

COM 1,2,3,4 Support RS232 with single mini type connector, support 5V.(refer to pin define)

PS/2 KB/MS x 1 JST connnector

Parallel Port:20-pin box header x 1

2 Port USB 2.0 with 6Pin wafer connector

High definition audio interface

1 x Smart FAN connector for CPU

On-board buzzer

Power Requirements



Power source from backplane through golden finger and AUX +12V

Support ATX/AT function by jumper setting

BIOS default is (ATX MODE)

Environment



Board level operating temperatures:-20˚C to 60˚C

Storage temperatures:-20˚C to 85˚C

Relative humidity



0% to 90% (operating, non-condensing)

0% to 95% (non-operating, non-condensing)

Certifications



CE approval

FCC Class A


Ordering Information:

PIC-688Q



PICMG 1.3 Half SBC, Q170, Intel® LGA1151 , DDR4 SODIMM, DVI x1, LAN x2, USB3.0 x2, SATA3.0 x4, ETX board

PIC-688C



PICMG 1.3 Half SBC, C236, Intel® LGA1151 , DDR4 SODIMM, DVI x1, LAN x2, USB3.0 x2, SATA3.0 x4, ETX board

PIC-688H



PICMG 1.3 Half SBC, H110, Intel® LGA1151 , DDR4 SODIMM, DVI x1, LAN x2, USB3.0 x2, SATA3.0 x4
