RMS-4100-FB

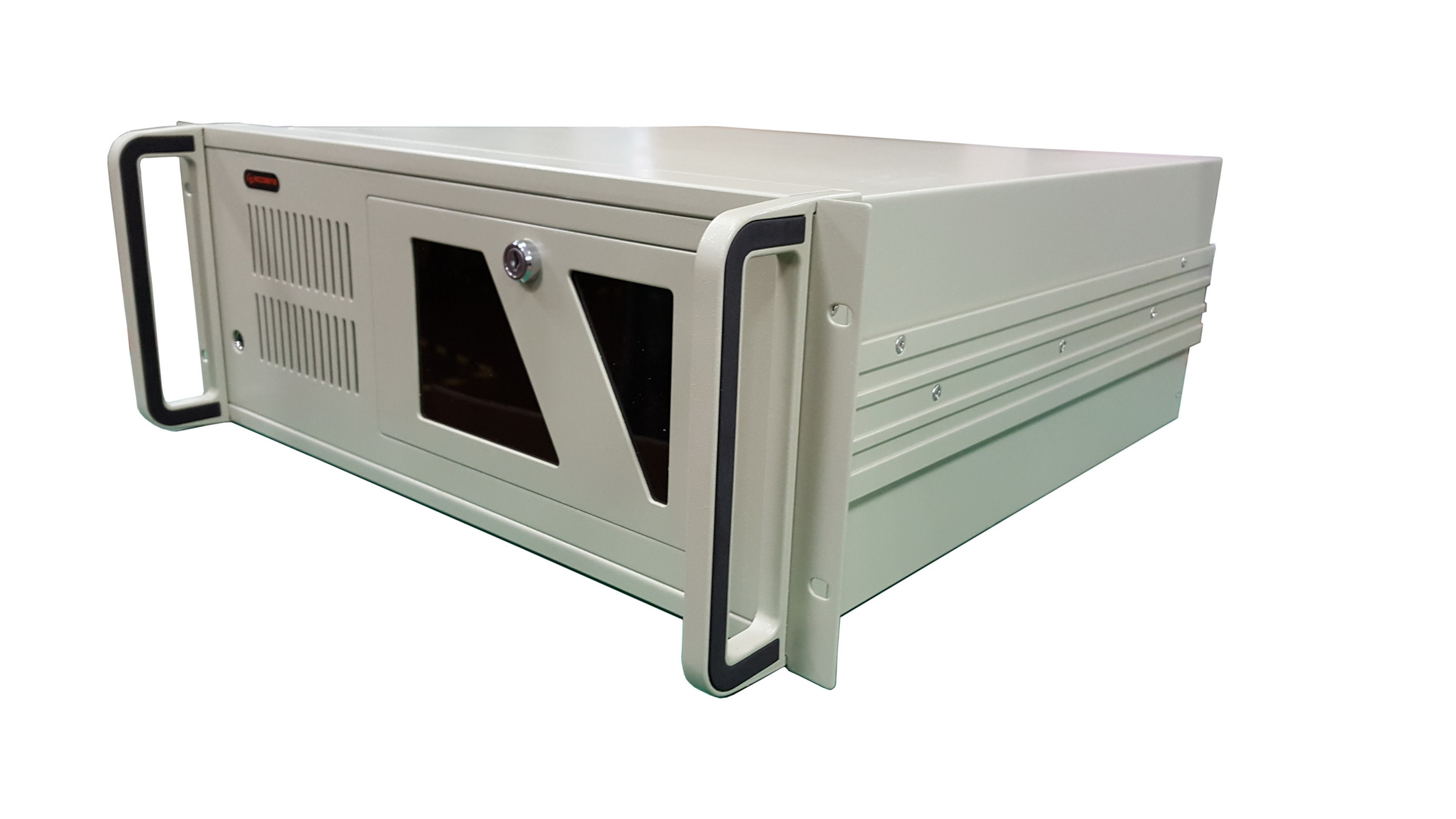

4U 19" Rackmount Intel® 6th Gen Core™ i5 Industrial Computer


Features:
◎ 4U 19" Rackmount Industrial Computer
◎ Heavy Duty 1.2mm / SGCC Steel
◎ Intel® 6th Gen Core™ i5 Processor with 8GB DDR4 Memory
◎ 2.5" 256GB Industrial Grade Solid State Disk Drive
◎ Dimension: 430.2mm(W) x 172.7mm(H) x 450.78mm(D)


Solution:

Accrete provides 4U 19” RMS rackmount systems to help customers quickly integrate with the current system for different applications. The rackmount systems features versatile I/O configuration, and offers flexibility and scalability for industrial application requiring superior performance and reliability.



Main System













Form Factor

PICMG 1.3

CPU

Intel® 6th Gen Core™ i5 Processor

Chipset

Intel® Q170

Memory

8GB DDR4 FSB 2133Mhz

Graphic

9th Gen Intel® Graphic

Lan

Dual Intel® Gigabit LAN

Storage



Solid State Disk Drive

2.5" SATA 256GB Industrial Grade

I/O Connectors







6 x USB Port, 1 x PS/2

4 x Serial, 1 x Parallel

2 x LAN, 4 x SATA

Expansion



1 x PCIe x16 (x8 Signal), 5 x PCIe x4 (2 Slot Support x8), 1 x PCIe x1, 4 x PCI

Power Supply



400W ATX Industrial Switching PSU

Chassis



4U 19" Rackmount Standard

Dimension



430.2(W) x 172.7(H) x 450.78(D) mm

Carton Size



552(W) x 285(H) x 600(D) mm

Construction



Heavy Duty 1.2mm / SGCC Steel

Colour



Light Gray / Black

Weight



21 kg

Environment



Operating Temperature: 0 ~ 55 ˚C

Certifications



CE, FCC, RoHS

Optional Accessories:

Processor



Support 6th Gen i3, i5, i7 processor

Memory



Support up to 32GB System Memory




Optional OS Installation:

Windows Embedded Standard 7 Runtime(WES7)




Ordering Information:

RMS-41i5-6FB



4U 19" Rackmount Intel® 6th Gen Core™ i5 Industrial Computer
