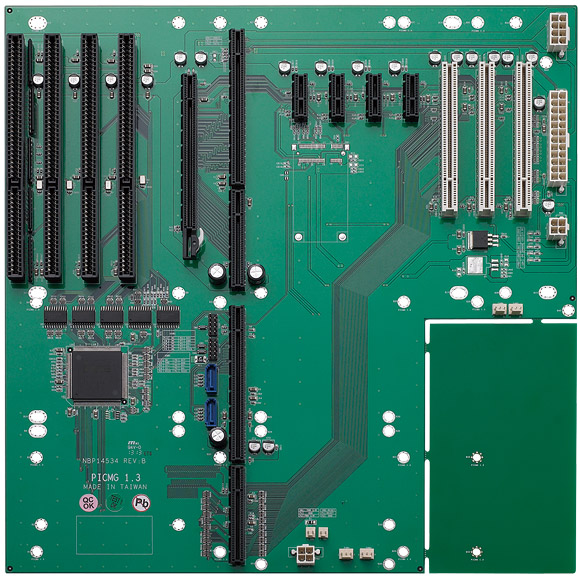

NBP-14534

14-slot Backplane for 4U Chassis with 1 SHB Slot, 4 x ISA, 3 x PCI, 4 x PCIex1


Features:
◎ 4 ISA slots on PICMG 1.3 backplane
◎ Dimensions : 317 mm (L) x 328 mm (W) (12.4" x 12.9")
◎ Support ATX & BTX power supply


Solution:

The NBP-14534 is a 14-slot backplane for 4U chassis with 1 SHB slot, 4 x ISA, 3 x PCI, 4 x PCIe x1. It follows PICMG 1.3 platform specifications and supports ATX/BTX power supply. The NBP-14534 PICMG 1.3 backplane is designed to work with PEAK-886VL2 and PEAK-887VL2.



System Architecture



For 13-Slot chassis

Dimension



317 mm (L) x 328 mm (W) (12.4" x 12.9")

Slots



PICMG1.3 (SBC Slot), Three PCI , Four ISA , Four PCIex1

Power Input



1 x 24pin power connector

1 x 8pin auxiliary power connector

1 x 4pin auxiliary power connector

Power Output



1 x 4pins 12V AUX power connector to SBC/SHB

1 x 4pins power connector for system fan

Environment



Board level operating temperatures: -0˚C to 60˚C

Storage temperatures:-20˚C to 80˚C

Relative Humidity



10% to 90% (non-condensing)

Certification



CE approval

FCC Class A


Ordering Information:

NBP-14534



PICMG 1.3 14-slot backplane for 4U chassis w/ 1 SHB slot, 12 PCIex
