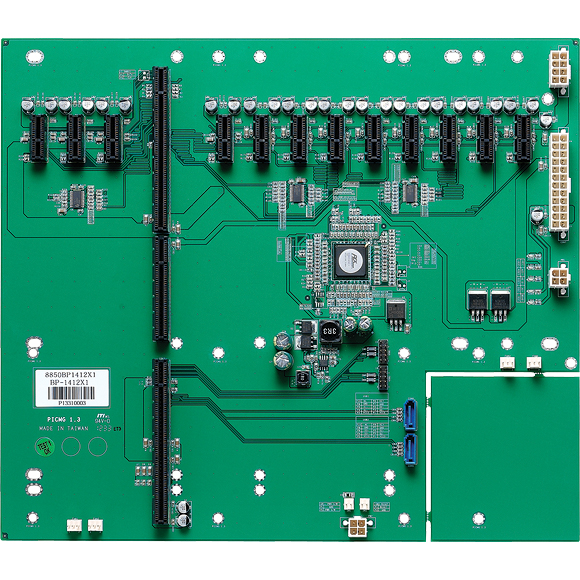

NBP-1412X1

14-Slot Backplane for 4U Chassis with 1 SHB Slot, 12 x PCIex1 Slots


Features:
◎ Greater Powers Delivery Capability, Supports High Performance System Host Board and Add-on Card
◎ Follows PICMG 1.3 Mount Holes and Compatible with GuangHsing's 4U Chassis
◎ Supports 12 x PCIex1
◎ Supports ATX/BTX Power Supply
◎ Compliance with PEAK-886VL2, PEAK-887VL2


Solution:

The NBP-1412X1 is a 14-slot backplane for 4U chassis with 1 SHB slot, 12 x PCIe x1 slots. It follows PICMG 1.3 platform specifications and supports ATX power supply.



System Architecture



14-slot backplane

Dimension



317mm (L) x 273mm (W) (12.4" x10.7")

Slots



12 x PCIex1

I/O Interface



4 x USB 2.0 with 2 x 9 pin-header

2 x SATA

6 x 3-pin FAN

Power Input



1 x 24-pin power connector

1 x Terminal Block

Environment



Board level operating temperatures: -0˚C to 60˚C

Storage temperatures:-20˚C to 80˚C

Relative Humidity



10% to 90% (non-condensing)

Certification



CE approval

FCC Class A


Ordering Information:

NBP-1412X1



PICMG 1.3 14-slot backplane for 4U chassis w/ 1 SHB slot, 12 PCIex
