Panel / Box Computer

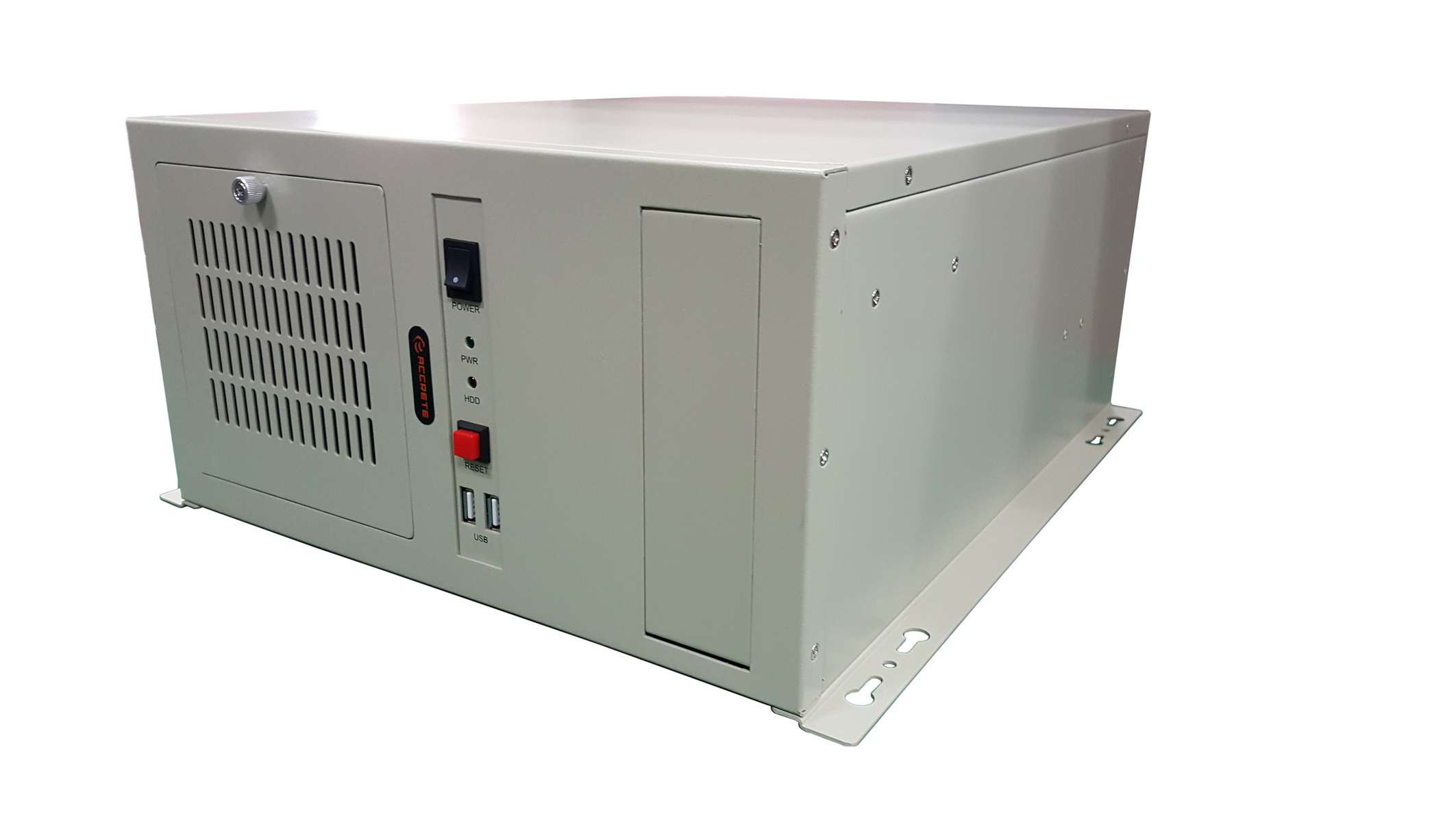

WMS-7000-FA
Features:
◎ Wallmount 7-Slot Industrial Computer
◎ Heavy Duty 1.2mm / SGCC Steel
◎ Intel® Core™ 2 Duo Processor with 2GB DDR3 Memory
◎ 2.5" 64GB Industrial Grade Solid State Disk Drive
◎ Dimension: 410mm(W) x 174mm(H) x 330mm(D)
Accrete provides Wallmount 7-slot systems to help customers quickly integrate with the current system for different applications. The Wallmount 7-Slot systems features versatile I/O configuration, and offers flexibility and scalability for industrial application requiring superior performance and reliability.
|
Main System |
|
Form Factor |
Standard ATX |
|
|
CPU |
Intel® Core™ 2 Duo E4600 Processor |
|||
|
Chipset |
Intel® G41 |
|||
|
Memory |
2GB DDR3 FSB 1333Mhz |
|||
|
Graphic |
Intel® Graphic |
|||
|
Lan |
Dual Gigabit LAN |
|||
|
Storage |
|
Solid State Disk Drive |
2.5" SATA 64GB Industrial Grade |
|
|
I/O Connectors |
|
12 x USB Port, 1 x PS/2 |
||
|
6 x Serial, 1 x Parallel |
||||
|
2 x LAN, 6 x SATA |
||||
|
Expansion |
|
1 x PCIe x16, 1 x PCIe x1, 5 x PCI |
||
|
Power Supply |
|
300W ATX Industrial Switching PSU |
||
|
Chassis |
|
Wallmount 7-Slot Standard |
||
|
Dimension |
|
410(W) x 180(H) x 330(D) mm |
||
|
Carton Size |
|
460(W) x 310(H) x 540(D) mm |
||
|
Construction |
|
Heavy Duty 1.2mm / SGCC Steel |
||
|
Colour |
|
Light Gray |
||
|
Weight |
|
18 kg |
||
|
Environment |
|
Operating Temperature: 0 ~ 55˚C |
||
|
Certifications |
|
CE, FCC, RoHS |
||
Optional Accessories:
|
Processor |
|
Support Intel® Core™ 2 Duo / Quad / Pentium® Dual Core™ processor |
|
Memory |
|
Support up to 4GB System Memory |
Optional OS Installation:
|
Windows Embedded Standard 7 Runtime(WES7) |
Ordering Information:
|
WMS-70E4-DFA |
|
Wallmount 7-Slot Intel® Core™ 2 Duo Industrial Computer |
