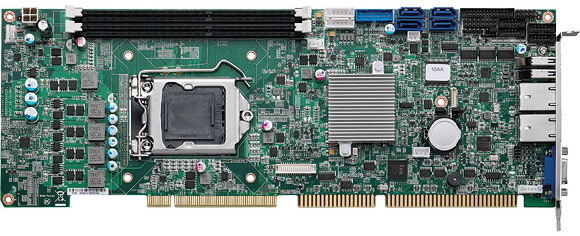

PEAK-779VL2

PICMG1.0 Full-size SBC with Intel® B75 Support Intel® 3th generation Core™ i7/i5/i3 processors


Features:
◎ Scalable platform 3th generation Intel® Core™ i7/i5/i3 processors + non-ECC
◎ Intel® B75 PCH chipset support PICMG1.0 specification
◎ Support Dual channel DDR3 with Non-ECC DIMMs 1333/1600MHz, up to 32GB
◎ Support PCI/ISA, 4 x USB3.0/4 x USB2.0, 1 x SATA3.0/3 x SATA2.0 and 2 x GbE
◎ Display support for VGA, DVI, HDMI
◎ Dimension 338.58mm (L) x 122mm (W) (8 layers single side)


Solution:

The PEAK-779VL2 is a PICMG1.0 Full-size single computing board featuring Intel® B75 PCH chipset supports 3th generation Intel® Core™ processor with Dual DDR3 DIMM socket up to 16GB DDR3 1333/1600MHz SDRAM with Non-ECC support and integrated HD Graphic controller. The Intel® B75 PCH manages SATA2.0/3.0 Ports. Furthermore, it supports others versatile I/O ports such as legacy PCI & ISA interface, two series ports, KB/Mouse interface, optional TPM function, eight USB ports, and two Intel PCI express Gigabit LAN port. It offers a great solution for advance industrial application that requires superb display and processing performance.



CPU Support



Support LGA1155,Intel® 3th generation Core™ processor

Intel® Core™ i7-3770 (4C/8M cache/3.4GHz/Max. TDP 77W)

Intel® Core™ i5-3550S (4C/6M cache/3.0GHz/Max. TDP 65W)

Intel® Core™ i3-3220 (2C/3M cache/2.4GHz/Max. TDP 55W)

Intel® Pentium® G2120 (2C/3M cache/1.6GHz/Max. TDP 65W)

Main Memory



Dual DDR3/DIMMs, support 1333/1600MHz non-ECC system memory up to 16GB

Chipset



Intel® B75 PCH chipset

BIOS



AMI system BIOS, Plug and play support

Advanced power management and advanced configuration & power interface support

LAN



Intel® 82579LM Gigabit Ethernet

Intel® 82574l Gigabit Ethernet

Support PXE boot from LAN, wake on LAN function

Display



Intel® HD graphics with DX11 support up to two independent displays

Supports VGA and DVI/HDMI interfaces

Audio



High Definition Audio interface with PIN header

I/O Interface



USB3.0, 2 x ports through I/O bracket/2 x port through JST Connector

USB2.0: 4 x ports through 2.5mm JST connectors

Four SATA Port: one SATA 3.0/three SATA 2.0

Four PCI interface/three ISA interface (through ITE8888)

Two RJ45 Gigabit Ethernet LAN ports

Four series ports (COM2 Supports RS232/422/485, RI pin can supply 5V/12V voltage)

Parallel port through box header

Keyboard/mouse interface

HDA interface through pin header for audio function (optional)

Power Requirements



+12V, +5V, +3.3V, +5VSB, +3.3V RTC power

Power source form backplane through golden finger and AUX +12V

Support ATX/AT Power supplies

Dimensions



338.58mm (L) x 122mm (W)

Environment



Board level operating temperatures: -15˚C to 60˚C

Storage temperatures:-20˚C to 80˚C

Relative Humidity



10% to 90% (operating, non-condensing)

5% to 95% (non-operating, non-condensing)

Certification



Meet CE

FCC Class A


Ordering Information:

PEAK-779VL2



PICMG 1.0 full-Size SBC, Intel® B75 chipset, 3th generation Intel® Core™ i7/i5/i3 processor with DDR3 DIMM 1333/1600MHz up to 16G, VGA integrated, 2 x GbE, 4 x SATA
