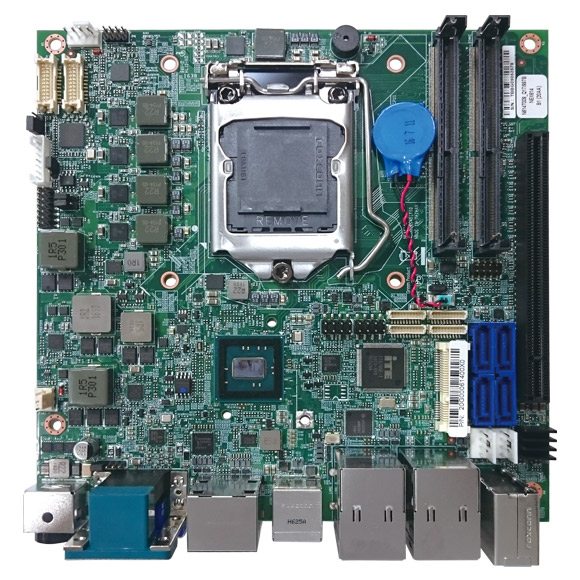

NEX-614

Mini-ITX, 6th Generation Intel® Core™ i7/ i5/ i3 Celeron® Process Family with H110, VGA, HDMI, DP, LVDS, mini-PCIe, 2 x GbE/10 x USB/4 x COM, 12V~24V DC Input


Features:
◎ Support LGA1151 for 6th generation Intel® Core™ i7/i5/i3 and Intel® Celeron® processors (codenamed Skylake)
◎ Intel® Q170/H110 chipset
◎ 2 x 260-pin SO-DIMM DDR4 up to 32GB
◎ Triple display: HDMI/DP/VGA/LVDS
◎ 2 x GbE with Intel® I219LM and i211-AT
◎ 1 x Full size mini-PCIe
◎ 4 x SATA 3.0
◎ 4 x COM, 7 x USB, 4-in/4-out GPIO, HD Audio
◎ 1 x PCIe x16
◎ DC +12V~24V input


Solution:

NEX-614 is a Mini-ITX board with 6th generation Intel® Core™ i7/i5/i3 processors and Intel® Celeron® processors (codenamed Skylake) and as well as next generation Intel® Core™/Celeron® processors which integrated Intel® Skylake graphic controller. NEX-614 supports multi-displays by HDMI (4K/2K), DP, VGA and LVDS (dual channel 24-bit up to 1920 x 1200 @60Hz). With dual DDR4 SO-DIMM channel, the maximum memory supports up to 32GB.



NEX-614 embedded Intel® H110 as default provides three SATA, four serial ports, four USB 3.0 ports, four USB 2.0 ports, two Gigabit Ethernet LAN port, one PCIe x16 slot and one full size mini-PCIe with 3G/Wi-Fi/mSATA interface. The power input covers from 12V to 24V DC. With optional Intel® Q170 chipset, NEX-614 expends 4th SATA function for mass storage. NEX-614 features versatile displays, riches I/O support for multimedia as well as critical mission of industrial embedded applications, such as Kiosk, digital signage, gamming, automation applications...etc.



CPU Support



Socket LGA1151, Intel® 6th and next generation Core™ i7/i5/i3 processor and Intel® Celeron® processors,14nm process

Main Memory



Dual DDR4/SO-DIMMs, up to 32GB

Chipset



Intel® Q170 PCH (optional)

BIOS



AMI system BIOS, Plug and play support

LAN



2 x RJ45 connectors with Intel® I219LM and i211-AT GbE controller

Display



1 x HDMI 1.4 connector (resolution up to 4K/2K@30Hz)

1 x DP 1.2 connector (resolution up to 4096 x 2304)

1 x VGA (resolution up to 1920 x 1200)

1 x LVDS (support dual port 24-bit)

Expansion Slot



1 x mini-PCI express slot support mSATA, Wi-Fi module and 3G module built with card holder

I/O Interface



COM1/3/4: RS232, 9-pin wafer with cable JST connector

COM2 : RS232/422/485, 1 x DB9 male connector on edge I/O

USB 2.0 x 3 ports by 2.54mm pin connector

USB 3.0 x 4 ports edge connector

4-in/4-out GPIO

2 x 7-pin header with PWR button/reset button/PWR LED/HDD LED

1 x 4-pin fan connector support PWM fan

1 x 3-pin system fan

Storage



3 x 7-pin SATA 6Gb/s connector; one supports SATA-DOM

4th SATA connector reserved for Q170 as optional to support RAID 0/1/5

2 x 4-pin connector for SATA power

Audio



Realtek ALC886 HD codec

Power Requirements



AT/ATX mode (by jumper setting default-AT)

4-pin power connector (right angle) for DC power input

+12V~24V DC input (with ±5%)

Optional function



TPM module (EBK-TPM)

Dimensions



170mm (L) x 170mm (W) (6.7”x 6.7”)

Environment



Board level operating temperatures: 0˚C to 60˚C

Relative Humidity



10% to 90% (operating, non-condensing)

5% to 95% (non-operating, non-condensing)

Certification



Meet CE

FCC Class A


Ordering Information:

NEX-614



Mini-ITX, Intel® 6th gen. Skylake Core™ processor family, with DP/HDMI/VGA/LVDS interface/2 x Gigabit LAN/PCIe x16/mPCIe/8 x USB/4 x COMs/TPM (option)/4 x SATA/12V~24V DC input
