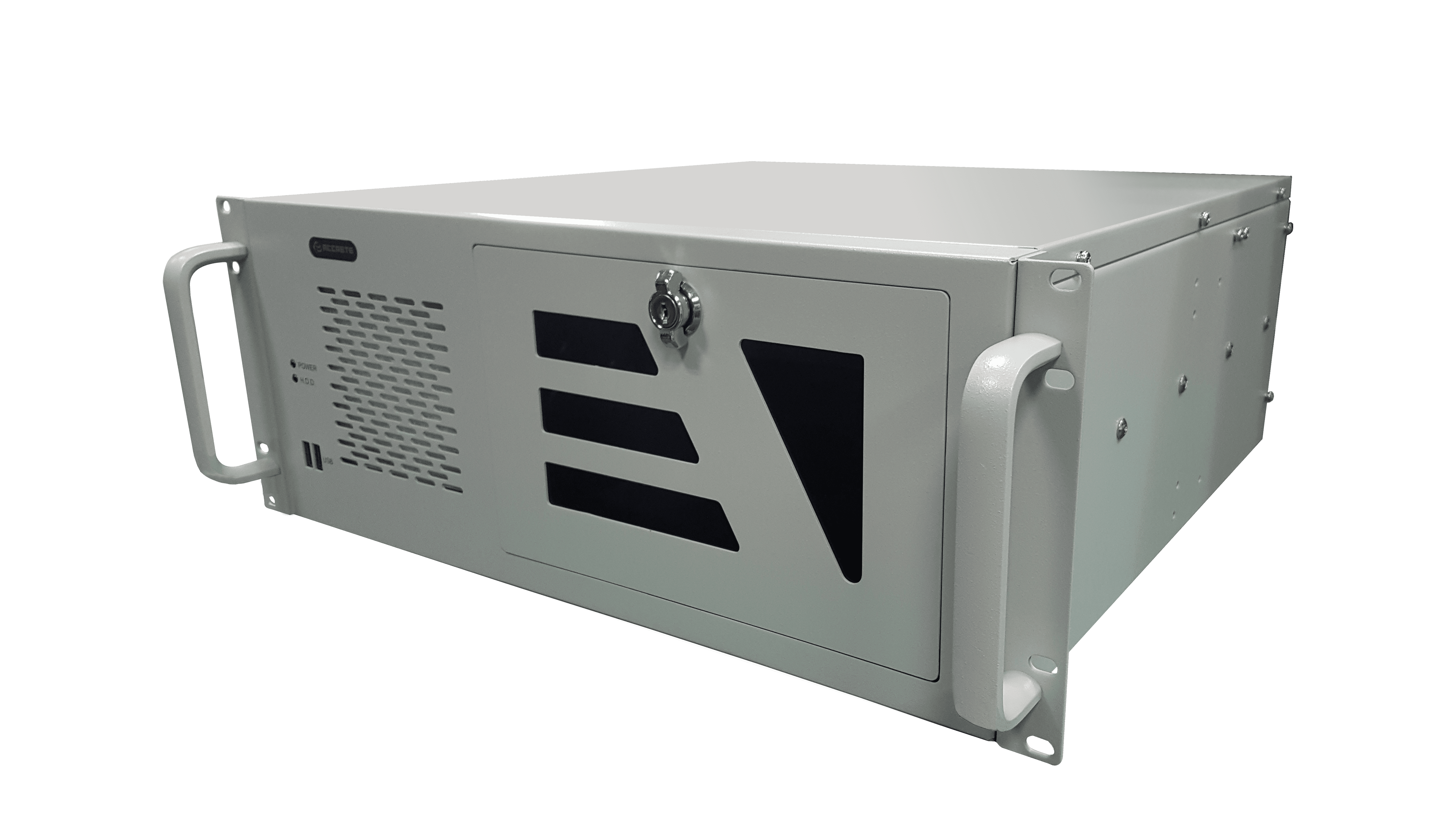

RMS-4000-FA

4U 19" Rackmount Intel® 6th Gen Core™ i5 Industrial Computer


Features:
◎ 4U 19" Rackmount Industrial Computer
◎ Heavy Duty 1.2mm / SGCC Steel
◎ Intel® 6th Gen  Core™ i5 Processor with 8GB DDR4 Memory
◎ 2.5" 256GB Industrial Grade Solid State Disk Drive
◎ Dimension: 431mm(W) x 176mm(H) x 435.5mm(D)

Accrete provides 4U 19” RMS rackmount systems to help customers quickly integrate with the current system for different applications. The rackmount systems features versatile I/O configuration, and offers flexibility and scalability for industrial application requiring superior performance and reliability.



Main System













Form Factor

Standard ATX

CPU

Intel® 6th Gen Core™ i5 Processor

Chipset

Intel® Q170

Memory

8GB DDR4 FSB 2133Mhz

Graphic

9th Gen Intel® Graphic

Lan

Dual Intel® Gigabit LAN

Storage



Solid State Disk Drive

2.5" SATA 256GB Industrial Grade

I/O Connectors







12 x USB Port, 1 x PS/2

4 x Serial, 1 x Parallel

2 x LAN, 6 x SATA

Expansion



1 x PCIe x16, 1 x PCIe x8, 1 x PCIe x4, 1 x PCIe x1, 3 x PCI

Power Supply



400W ATX Industrial Switching PSU

Chassis



4U 19" Rackmount Standard

Dimension



431(W) x 176(H) x 435.5(D) mm

Carton Size



550(W) x 300(H) x 600(D) mm

Construction



Heavy Duty 1.2mm / SGCC Steel

Colour



Light Gray / Black

Weight



21 kg

Environment



Operating Temperature: 0 ~ 55 ˚C

Certifications



CE, FCC, RoHS

Optional Accessories:

Processor



Support 6th Gen i3, i5, i7 processor

Memory



Support up to 64GB System Memory




Optional OS Installation:

Windows Embedded Standard 7 Runtime(WES7)




Ordering Information:

RMS-40i5-6FA



4U 19" Rackmount Intel® 6th Gen Core™ i5 Industrial Computer
