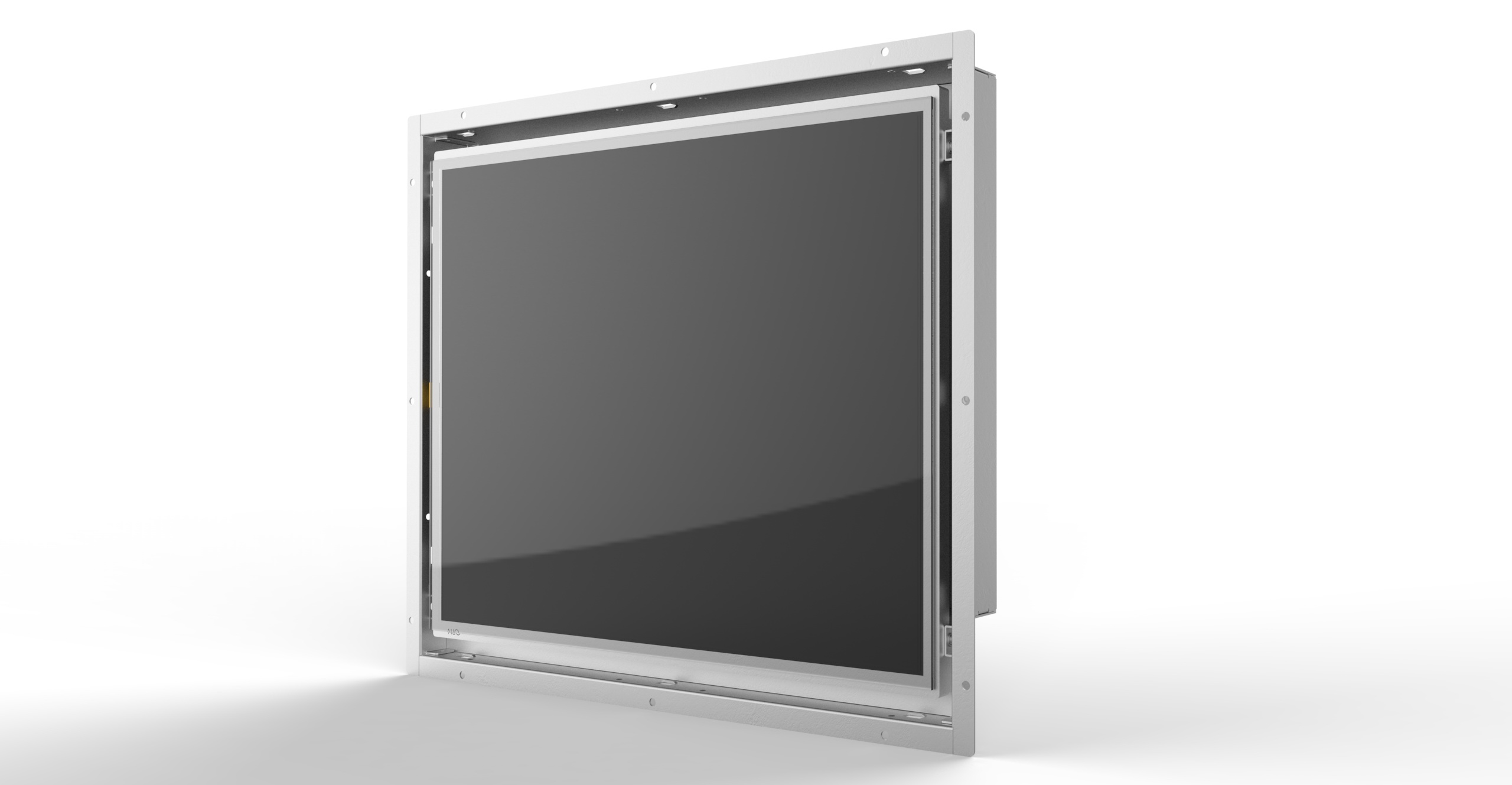

ODP-1780

17" Open Frame Sunlight Readable Monitor with Touch Screen, VGA


Features:
◎ 17” LCD supports 1280 x 1024 pixels, high brightness 1500 nits
◎ Supports Full-function OSD Keys to Optimize the Display
◎ 15 pin D-sub Analog RGB 0.7Vp-p/75 Ohm signal input
◎ Low power consumption
◎ Slim and Flat Ergonomic Design
◎ Optional 5 Wire resistive touch screen
◎ Supports Open frame Mount, Wall Mount, Panel Mount

The ODP-1780 open frame Sunlight Readable monitor offers a standard 17" TFT LCD screen supporting 1280 x 1024 pixels, a sturdy and ready to mount metal chassis, an optional 5 wire resistive touch screen. Each of the monitors come complete with signal input cables, an OSD control, and a power supply making it to ready to install into the end application. The ODP-1780 is specially designed for commercial and industrial applications. It provides system resellers and solution integrators a wide choice of added value for their products, such as retail or ticketing kiosks, ATM, arcade games, vending machines, industrial equipment and instrumentation.



Model No.



ODP-1780

Construction



Steel Chassis

Display



17" Color Active TFT Flat Panel Display

Luminance



1500 cd/m2 (Typ.)

Viewing Angle(H/V)



170/160

Resolution



1280 x 1024, 16.7M colors

Pixel Pitch



0.264 X 0.264 mm

Backlight Lifetime



LED Backlight, 30,000 Hrs

OSD Controls



Automatic Screen, Setup (OSD), Brightness, Contrast, Horizontal/Vertical Position, Color Temperature

SYSTEM I/O



VGA x 1; 12 VDC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only)

External Power Adapter



DC 12V, with External AC-DC Adapter (100-240V)

Optional Touch Screen



5 Wire resistive touch screen with USB Interface

Dimensions (WxDxH)



400mm x 344.7mm x 46mm

Operating Temperature



0 ~ 50 ˚C

Storage Temperature



-10 ~ 60 ˚C

Relative Humidity



20~80%, non-condensing

Certification



CE

Vibration



2G peak, 5~500Hz (Random)

Shock



15G peak acceleration (11 msec. Duration)



Ordering Information:

ODP-1780



17” Open Frame Sunlight Readable Monitor

ODP-1780T



17” Open Frame Sunlight Readable Monitor with 5 Wire resistive Touch Screen
