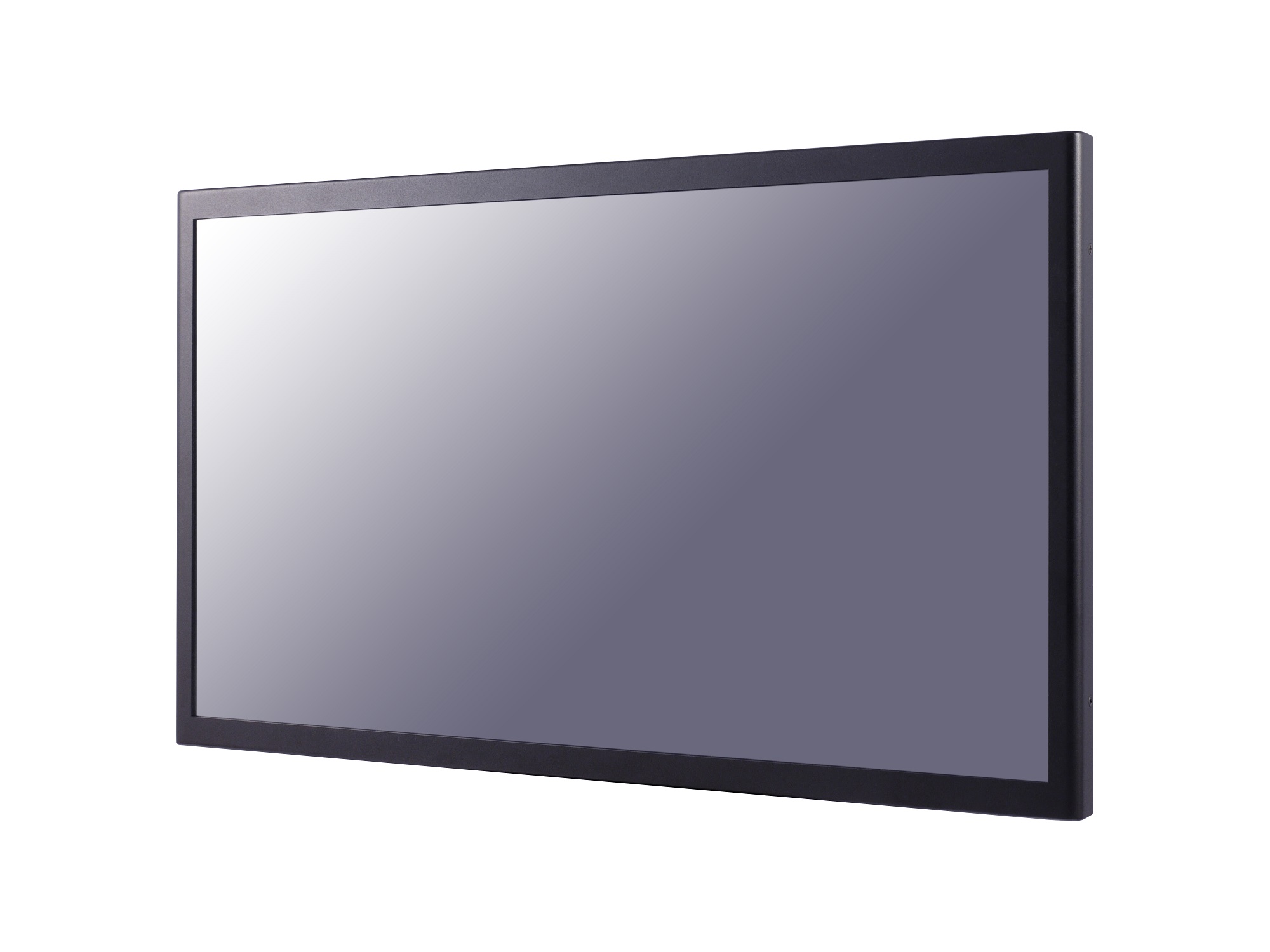

Digital Signage Device
IDM-2180
Features:
◎ 21.5” LCD supports 250nits and 1920 x 1080 pixels, high brightness 1200nits
◎ Supports Full-function OSD Keys to Optimize the Display
◎ 15 pin D-sub Analog RGB 0.7Vp-p/75 Ohm signal input
◎ Low power consumption
◎ Slim and Flat Ergonomic Design
◎ Optional 5 Wire resistive touch screen
◎ Supports Panel Wall Mount, VESA Mount
The IDM-2180 is a 21.5” industrial Sunlight Readable monitor integrated with an optional 5 Wire resistive touch screen. Features a 21.5” high quality Full HD TFT LCD flat panel, it presents a large display area as well as vivid and sharp images for your HMI. With Direct-VGA signal transmission, it allows Any VGA control card to be used in your system. The IDM-2180 industrial monitor is designed to meet the demanding performance requirements of business and industrial applications including factory / machine / warehouse / home automation, kiosk, network communication and information terminal.
|
Model No. |
|
IDM-2180 |
|
Construction |
|
Black Front Bezel, Steel Chassis |
|
Display |
|
21.5" Color Active TFT Flat Panel Display |
|
Luminance |
|
1200 cd/m2 |
|
Viewing Angle(H/V) |
|
178/178 |
|
Resolution |
|
1920 x 1080, 16.2M colors |
|
Pixel Pitch |
|
0.248 X 0.248 mm |
|
Backlight Lifetime |
|
LED Backlight, 30,000 Hrs |
|
OSD Controls |
|
Setup (OSD), Brightness, Contrast, Horizontal/Vertical Position, Color Temperature |
|
SYSTEM I/O |
|
VGA x 1; DVI-D x 1; 12 VDC Converter x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) |
|
Optional Touch Screen |
|
5 Wire resistive touch screen with USB Interface |
|
Dimensions (WxDxH) |
|
506.4mm x 302.4mm x 48.5mm |
|
Operating Temperature |
|
0 ~ 50 ℃ |
|
Storage Temperature |
|
-20 ~ 60 ℃ |
|
Relative Humidity |
|
10~90%, non-condensing |
|
Certification |
|
CE |
|
Vibration |
|
1G peak, 5~500Hz (Random) |
|
Shock |
|
15G peak acceleration (11 msec. Duration) |
Ordering Information:
|
IDM-2180 |
|
21.5" Industrial Sunlight Readable Monitor |
|
IDM-2180T |
|
21.5" Industrial Sunlight Readable Monitor with 5 Wire resistive touch screen |
