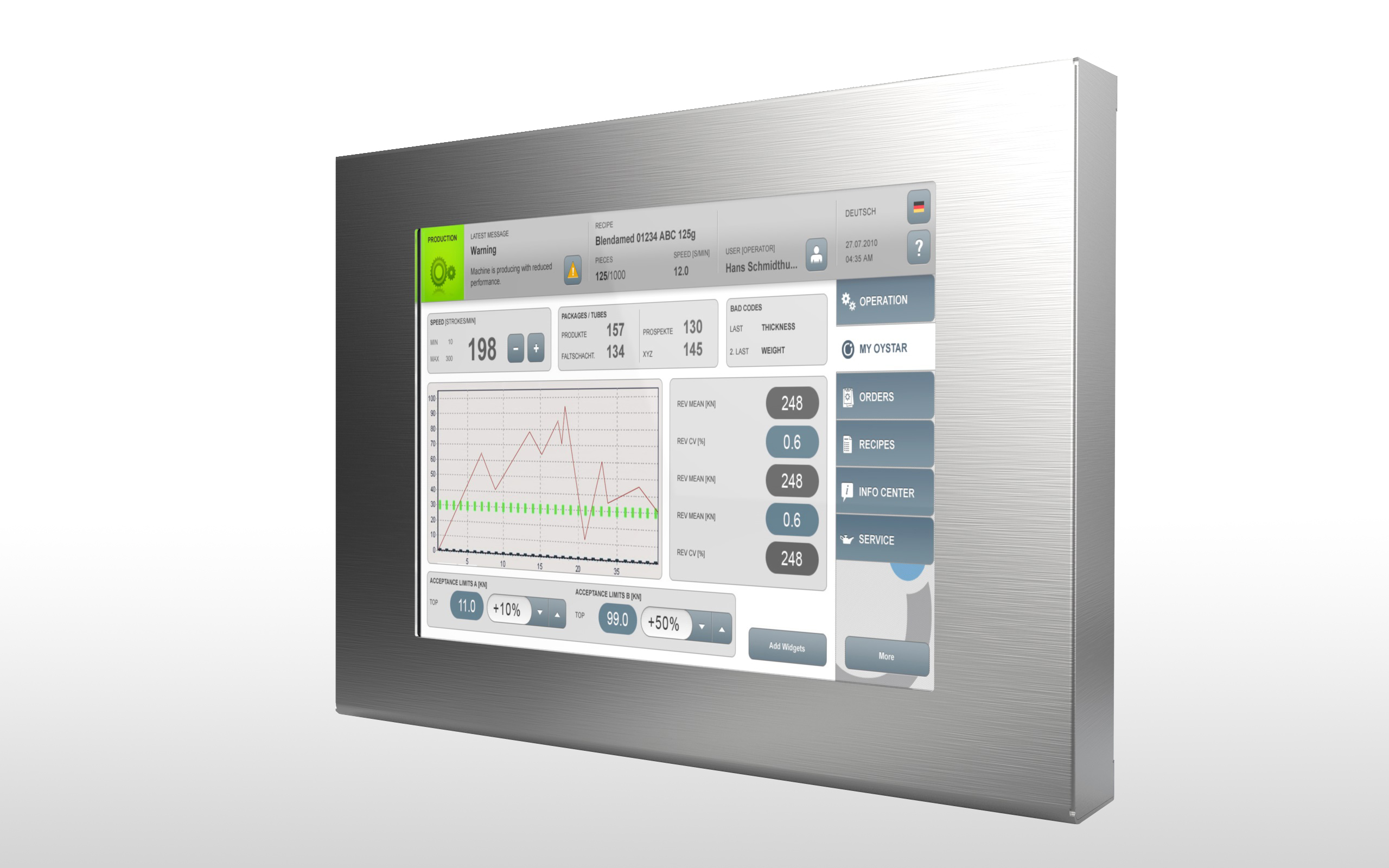

STL-1580
Features:
◎ 15” LCD supports 1024 x 768 pixels, high brightness 1500 nits
◎ Supports Full-function OSD Keys to Optimize the Display
◎ 15 pin D-sub Analog RGB 0.7Vp-p/75 Ohm signal input
◎ Low power consumption
◎ Slim and Flat Ergonomic Design
◎ VESA Mount
The STL-1580 Industrial Sunlight Readable monitor offers a standard 15" TFT LCD screen supporting 1024 x 768 pixels and 1500nits,a sturdy and ready to mount metal chassis, an optional 5 wire resistive touch screen. Each of the monitors come complete with signal input cables, an OSD control, and a power supply making it to ready to install into the end application. The STL-1580 is specially designed for commercial and industrial applications. It provides system resellers and solution integrators a wide choice of added value for their products, such as retail or ticketing kiosks, ATM, arcade games, vending machines, industrial equipment and instrumentation.
|
Model No. |
|
STL-1580 |
||
|
Construction |
|
304 Stainless Steel, Full IP65 |
||
|
Display |
|
15" Color Active TFT Flat Panel Display |
||
|
Luminance |
|
1500 cd/m2(Typ.) |
||
|
Viewing Angle(H/V) |
|
160/140 |
||
|
Resolution |
|
1024 x 768, 16.2M colors |
||
|
Pixel Pitch |
|
0.297 X 0.297 mm |
||
|
Backlight Lifetime |
|
LED Backlight, 30,000 Hrs |
||
|
OSD Controls |
|
Automatic Screen, Setup (OSD), Brightness, Contrast, Horizontal/Vertical Position, Color Temperature |
||
|
SYSTEM I/O |
|
VGA x 1; 12 VDC Jack x 1 |
||
|
USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) |
||||
|
IP65 (Waterproof I/O with M12 connector) |
||||
|
External Power Adapter |
|
DC 12V, with External AC-DC Adapter (100-240V) |
||
|
Touch Screen |
|
5 Wire resistive touch screen with USB Interface |
||
|
Dimensions (WxDxH) |
|
425mm x 329.99mm x 62.5mm |
||
|
Operating Temperature |
|
0 ~ 50 ℃ |
||
|
Storage Temperature |
|
-20 ~ 60 ℃ |
||
|
Relative Humidity |
|
10~90%, non-condensing |
||
|
Certification |
|
CE |
||
|
Vibration |
|
1G peak, 5~500Hz (Random) |
||
|
Shock |
|
15G peak acceleration (11 msec. Duration) |
||
Ordering Information:
|
STL-1580 |
|
15” IP65 Stainless Steel & Sunlight Readable Monitor |
