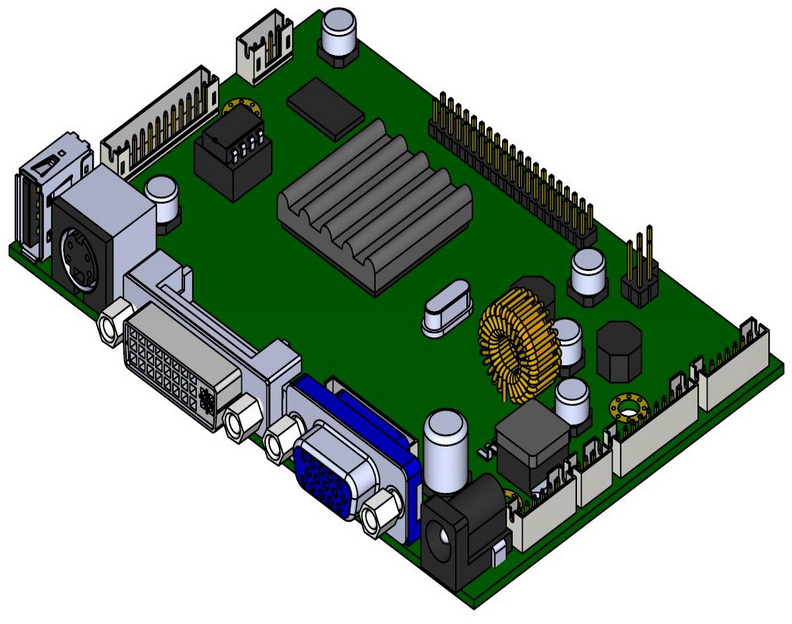

ADB-1000B

A/D Board series


Features:
◎ 15-pin D-sub analog RGB 0.7Vp-p/75 Ohm signal input, RGB input Maximum resolution 1920×1080 (Full HD) @ 60Hz
◎ DVI-D input, DVI input Maximum resolution 1920×1080 (Full HD) @ 60Hz
◎ S-Video input, Support NTSC/PAL Auto-switching control(Optional)
◎ Dual LVDS Interface Output, Support 6bit/8bit/10bit panel
◎ On-Screen Display Control ◎ Low power consumption
◎ Auto adjustment for frequency, phase, H/V position, and white balance
◎ Support brightness, contrast and gamma correction
◎ Multi language support
◎ USB multi play(Optional)


Solution:

The ADB-1000B series driving boards are designed for LCD monitor and other flat panel display applications. The product covered herein are designed and manufactured for following application areas.

• Office electronics
• Instrumentation and measuring equipment
• Machine tools
• Home appliances



Input Source



Analog RGB 0.7Vp-p, 75Ω, DVI-D

Input Optional



S-Video, USB multi play, Audio(w/o amplifier)

Panel Interface



LVDS 1CH/2CH, LVDS 6bit/8bit/10bit

Resolution



Up to 1920 x 1080(Full HD)@60Hz

Panel Power



DC3.3V/Max. 750mA, DC5V/Max. 1.3A, DC12V/Max.720mA

Power Input



DC12V/24V, DC Jack / internal 6pin 2.0 connector

Inverter Power



Internal power DC12V (current up to 2A)

External power DC12V (current up to 5A, Adapter spec)

User Controls(OSD)



Auto Adjust, Brightness, Contrast, Size, Position, Multi Languages

Power consumption (Typ.)



0.62A(6.4") ~ 5A(57")

Power saving mode



0.05A(Inactive)

Power protection



Fuse fitted(recovered type)

Plug-n-Play



VESA DDC2B

Dimensions (WxLxH)



80 x 120 x 20 mm

Operating Temperature



0~50˚C(32~122˚F)

Storage Temperature



-10~70˚C(14~158˚F)

Relative Humidity



10~90% @ 40˚C Non-condensing


Ordering Information:

ADB-1000B



TFT LCD Driving board with VGA, DVI-D

ADB-1000B-S



TFT LCD Driving board with VGA, DVI-D, S-Video

ADB-1000B-U



TFT LCD Driving board with VGA, DVI-D, USB multi play
