Industrial Board

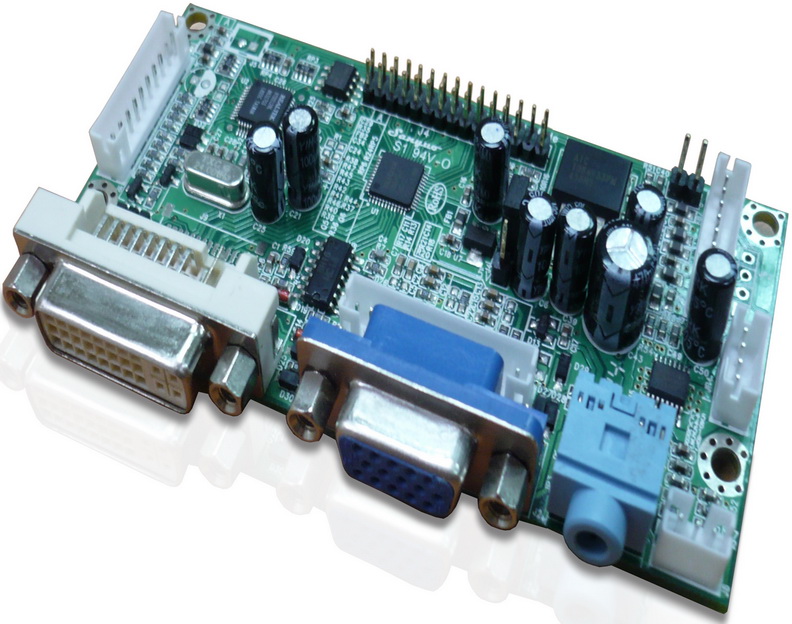

ADB-0100
Features:
◎ 15-pin D-sub analog RGB 0.7Vp-p/75 Ohm signal input
◎ Power Input : DC12V ~ DC24V
◎ Stereo audio input (optional)
◎ Multi language support
◎ Low power consumption
◎ Small form factor
The ADB-0100 series driving boards are designed for LCD monitor and other flat panel display applications.
The product covered herein are designed and manufactured for following application areas.
• Office electronics
• Instrumentation and measuring equipment
• Machine tools
• Home appliances
|
Model Name |
|
ADB-0100 |
|
PC Input |
|
Analog RGB 0.7Vp-p / 75Ω |
|
Input Option |
|
VGA, DVI (optional) |
|
Interface |
|
LVDS |
|
Panel Power |
|
3.3V, 5V, 12V |
|
Resolution |
|
Up to 1280 x 1024@75Hz |
|
Power Input |
|
ADB-0108B support DC12V ~ DC24V |
|
User Controls (OSD) |
|
Auto Adjust, Brightness, Contrast, Size, Position, Multi Languages, OSD Position |
|
Power Saving Mode |
|
0.05A (Inactive) |
|
Power Protection |
|
Fuse fitted |
|
Power Consumption (Typ.) |
|
0.62A (6.4") ~ 2.6A (19") |
|
Dimensions (WxLxH) |
|
100mm x 50mm x 15mm |
|
Operating Temperature |
|
0 ~ 50 ˚C |
|
Storage Temperature |
|
-10 ~ 70 ˚C |
|
Relative Humidity |
|
10~90% @ 40 ˚C Non-condensing |
|
Plug-n-Play |
|
VESA DDC1 / DDC2B |
Ordering Information:
|
ADB-0100 |
|
TFT LCD Driving board with VGA |
|
ADB-0100-D |
|
TFT LCD Driving board with VGA,DVI-D |
|
ADB-0108B |
|
Stand Alone Wide voltage DC/DC Power Board for ADB-0100 |
