Industrial Display
ODP-1510
Features:
◎ 15” LCD supports 1024 x 768 pixels
◎ Supports Full-function OSD Keys to Optimize the Display
◎ 15 pin D-sub Analog RGB 0.7Vp-p/75 Ohm signal input
◎ Low power consumption
◎ Slim and Flat Ergonomic Design
◎ Optional 5 Wire resistive touch screen
◎ Supports Open frame Mount, Wall Mount, Panel Mount

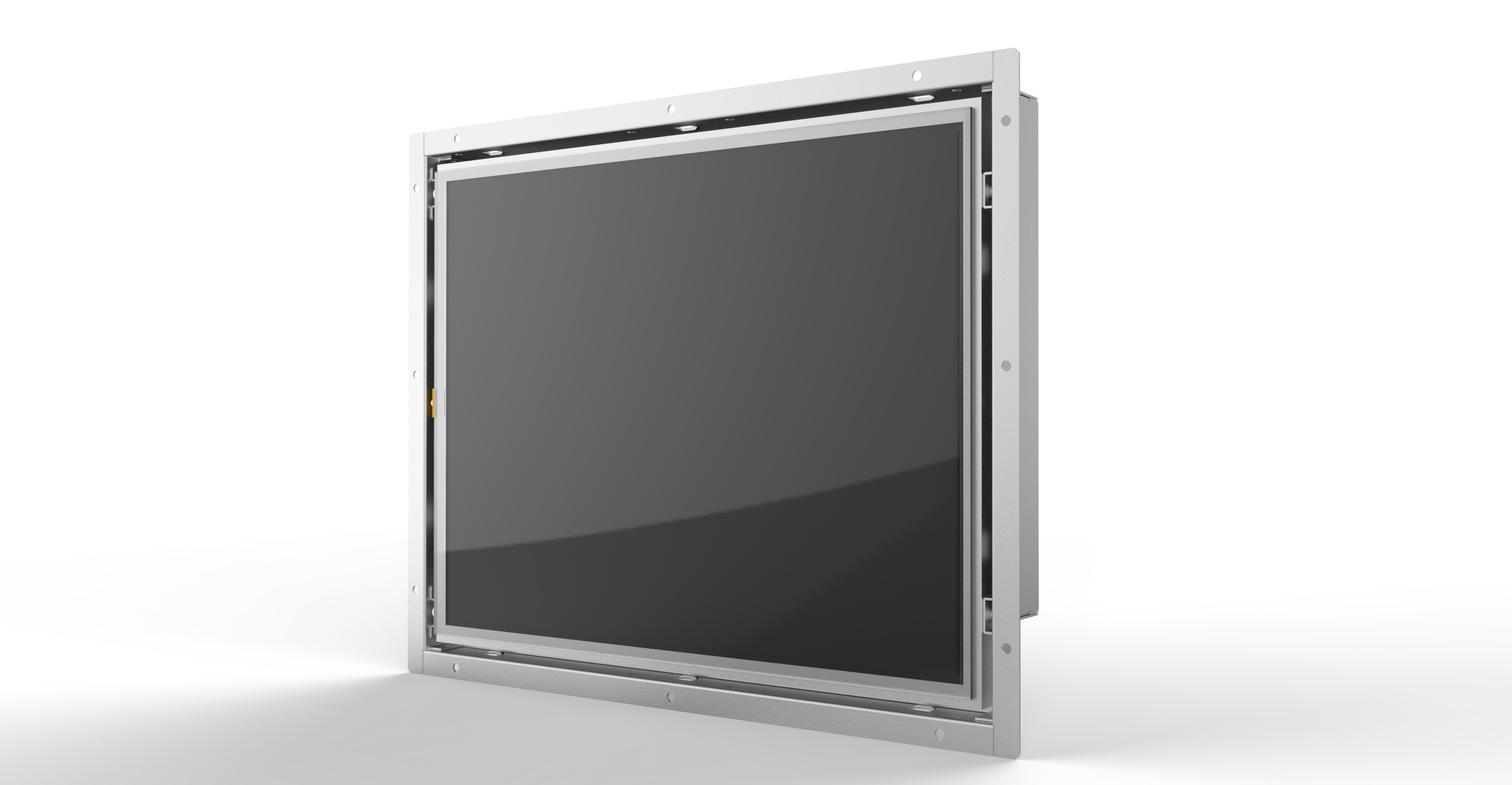

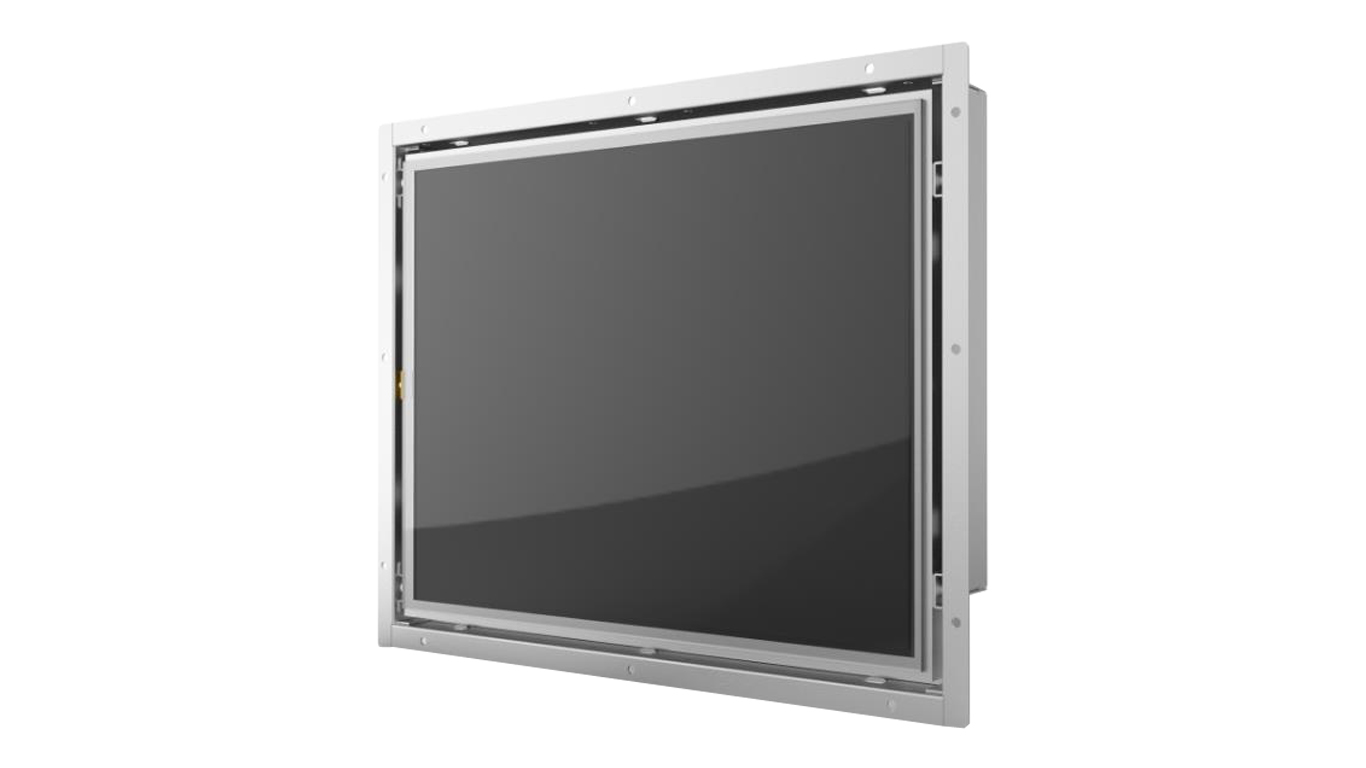

The ODP-1510 embedded open frame display monitor offers a standard 15" TFT LCD screen supporting 1024 x 768 pixels, a sturdy and ready to mount metal chassis, an optional 5 wire resistive touch screen. Each of the monitors come complete with signal input cables, an OSD control, and a power supply making it to ready to install into the end application. The ODP-1510 is specially designed for commercial and industrial applications. It provides system resellers and solution integrators a wide choice of added value for their products, such as retail or ticketing kiosks, ATM, arcade games, vending machines, industrial equipment and instrumentation.
|
Model No. |
|
ODP-1510 |
|
Construction |
|
Steel Chassis |
|
Display |
|
15" Color Active TFT Flat Panel Display |
|
Luminance |
|
400 cd/m2 (Typ.) |
|
Viewing Angle(H/V) |
|
160/140 |
|
Resolution |
|
1024 x 768, 16.2M / 262K colors |
|
Pixel Pitch |
|
0.297 X 0.297 mm |
|
Backlight Lifetime |
|
LED Backlight, 50,000 Hrs |
|
OSD Controls |
|
Automatic Screen, Setup (OSD), Brightness, Contrast, Horizontal/Vertical Position, Color Temperature |
|
SYSTEM I/O |
|
VGA x 1; 12 VDC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) |
|
External Power Adapter |
|
DC 12V, with External AC-DC Adapter (100-240V) |
|
Optional Touch Screen |
|
5 Wire resistive touch screen with USB Interface |
|
Dimensions (WxDxH) |
|
364mm x 289mm x 44.5mm |
|
Operating Temperature |
|
0 ~ 50 ˚C |
|
Storage Temperature |
|
-10 ~ 60 ˚C |
|
Relative Humidity |
|
20~80%, non-condensing |
|
Certification |
|
CE |
|
Vibration |
|
2G peak, 5~500Hz (Random) |
|
Shock |
|
15G peak acceleration (11 msec. Duration) |
Ordering Information:
|
ODP-1510 |
|
15" Open Frame Display Monitor |
|
ODP-1510T |
|
15" Open Frame Display Monitor with 5 Wire resistive Touch Screen |
